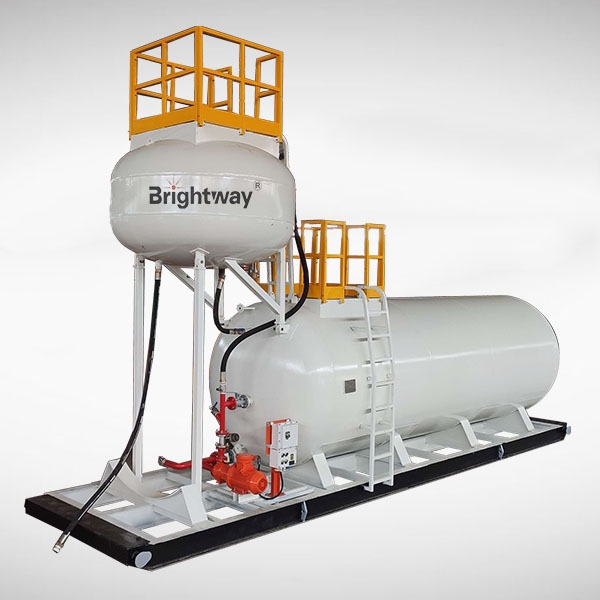

Brightway BWGY Elevated Oil Tank

  • Brightway
  •    Description & Specification
  •    Gallery

Elevated oil tanks are also known as explosion-proof oil tanks or oil rig oil tanks. Elevated oil tanks are used as supporting equipment for drilling rigs. They mainly provide the required oil for the motors and boilers of drilling rigs. They are ideal fuel supply and storage devices.

According to the structure, elevated oil tank can be divided into: vertical oil tank, horizontal oil tank; according to the volume, elevated oil tank can be divided into large oil tank, medium oil tank, small oil tank. Elevated oil tank is mainly used to store diesel, gasoline, engine oil, etc. at construction sites, hydropower stations, gas stations, docks, highways, railways and other places. As elevated oil tank manufacturer, Brightway can produce elevated oil tanks of different specifications and capacities according to the different requirements of users.

Brightway elevated oil tanks are designed and manufactured based on international standards. It is suitable for air temperature of -20 degrees to +50 degrees. It can be easily hoisted and hauled, meeting the requirements of road, railway, and ocean transportation, and is suitable for long-distance transportation and frequent movement.

The electrical control of Brightway elevated oil tanks meets the power supply requirements of voltage 380V and frequency 50Hz. It is explosion-proof, anti-corrosion, moisture-proof, high-temperature resistant, sand-proof has high adaptability.

Features of Brightway BWGY series of elevated oil tanks:

  1. Paint-proof treatment on the inner wall of the oil tank and anti-corrosion treatment on the outer wall;
  2. Tank body flaw detection and leakage prevention, meeting the air temperature of -20 degrees to +50 degrees;
  3. The tank is foldable and convenient for hoisting and transportation;
  4. It is equipped with automatic loading and unloading pump, with large flow and high lift;
  5. The electronic control is high-quality and has an explosion-proof cabinet;
  6. It can be used for multiple purposes, including oil supply, oil storage, etc.;
  7. It can be customized according to drawings;

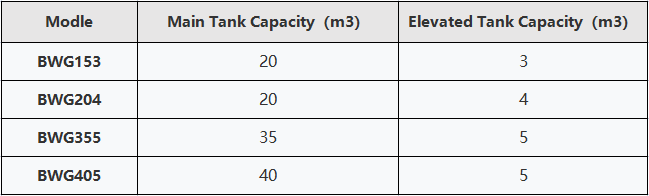

Technical parameters of Brightway BWGY series of elevated oil tanks:
