Drilling Mud Circulation System

Drilling Mud Circulation System

Drilling Mud Circulation System


Brightway is the Drilling Mud Circulation Equipment and Mud Circulation System designer and Manufacturer in China, and can design and manufacture drilling Mud Circulation System for oil gas drilling rig, such as: ZJ30 1000hp, ZJ40 1000hp, zj50 1500hp, ZJ70 2000hp, ZJ90 3000hp drilling rig.

Advantages of Drilling Mud Circulation System


1. Honor of Drilling Solid Control Equipment Technology Research and Development Center;
2. 12 years design and production of experience in Drilling Rig Mud Circulation System;
3. Successful application cases of Mud Circulation System in oil drilling at home and abroad;
4. Mud Circulation Equipment all independent production, system composition is more scientific and reliable;
5. Advanced drilling mud circulation system design concept, can adapt to complex drilling requirements;
6. Modular combination, full explosion-proof circuit, convenient installation, safe and reliable;

Equipment of Drilling Mud Circulation System


Drilling Mud Circulation System is composed of solids control equipment such as: shale shaker, vaccum degasser, desilter desander, decanter centrifuge, mud circulation tanks with agitators and mixing hopper, mud gas separator etc.

Brightway can design and manufacture Drilling Mud Circulation System according Drilling Rig Types, such as ZJ10-70 (1000-3000HP) Drilling rig.  The Equipment Configuration Diagram is as follows:

Equipment of Drilling Mud Circulation System

Types of Drilling Mud Circulation System


Brightway can design 3 types drilling mud circulation system for drilling rig, includes: Skid mounted Drilling Mud Circulation System,  Truck-mounted Drilling Mud Circulation System, Low temperature Drilling Mud Circulation System.  The System design principles refer to the "Design of Drilling Mud Circulation System

1. Skid mounted Drilling Mud Circulation System
 Skid mounted Drilling Mud Circulation System

2. Truck-mounted Drilling Mud Circulation System

Truck-mounted Drilling Mud Circulation System

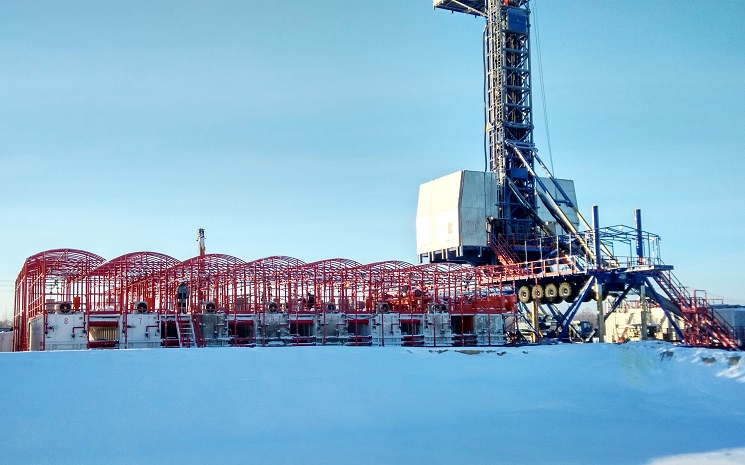

3. Low temperature Drilling Mud Circulation System

Low temperature Drilling Mud Circulation System

Design of Drilling Mud Circulation System


1. The drilling mud circulation system is designed for different drilling conditions. Some drilling areas, such as Russia, require a mud circulation system that can withstand the cold; such as the Middle East, where the temperature is very high, and the mud circulation system needs to be designed to withstand high temperatures. For example, for desert areas, the mud circulation system can be designed to prevent wind and sand erosion;

2. The layout of the drilling mud circulation system can also be designed according to the working conditions of the drilling site. For example, the drilling site is narrow and the mud circulation system can be lined up; the drilling site is open, the mud circulation system layout can be side by side + the line layout; the drilling site needs to be moved, and the mud circulation system can all be implemented side by side;

3. Drilling mud circulation system for different types of drilling rigs is also divided into 1000HP drilling rig mud circulation system, suitable for drilling rigs with a drilling depth of 4 kilometers; 1500HP drilling rig mud circulation system, suitable for drilling rigs with a drilling depth of 5 kilometers; 2000HP drilling rig mud circulation system, suitable for Drilling rig with drilling depth of 7 kilometers; mud circulation system of 3000HP drilling rig, suitable for drilling rig with drilling depth of 9 kilometers, etc.
