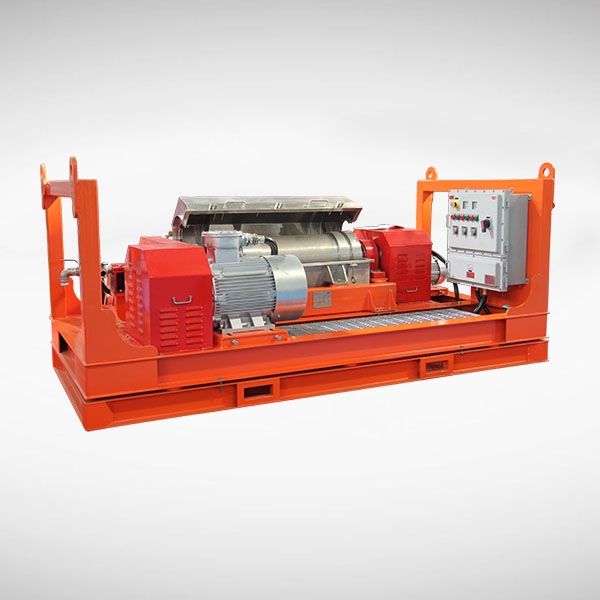

Brightway decanting centrifuges are designed with practical structure and environmental friendly concept. The middle speed, high speed and variable-speed decanting centrifuges can separate and remove solid phrases in drilling fluids with safe, consistent, and efficient working performance, satisfying different request for solids control in oil drilling, drilling waste management, and other industrial applications.
Brightway Decanting Centrifuges Advantages
1. Introducing American technology, researching and developing with the Petroleum University in China.
2. Selecting core components material according to customers' different requirements.
Adopting 2205 dual phase steels and SKF Bearing, tungsten carbide, alloy sheet, ceramic chip as drum etc.
3. Electric components adopts famous brand, such as CHINT, SIMENS, Schneider or ABB.
4. Motor adopts famous domestic brand or imported brand.
5. Spraying process adopts airless spraying or Hot-Dip galvanizing.
6. Speed can be up to 3500r/min and varied frequency driven.
Brightway Decanting Centrifuges Parameters
| Model | BWLW 450X842N | BWLW 450X1250N | BWLW 355X1250N | BWLW 365G/VFD |
|---|---|---|---|---|
| Bowl Diameter | 450mm | 450mm | 355mm | 365mm |
| Bowl Length | 842mm | 1000mm | 1250mm | 1250mm |
| Bowl Speed (r/min) | 1800rpm | 2200rpm | 3200rpm | 2200-3900rpm |
| G-Force | 815 | 1220 | 2035 | 2500 |
| Separation Point | 5~7μm | 5~7μm | 2~5μm | 2-5μm |
| Motor Power | 22Kw-4p | 30Kw-4p | 30Kw-4p | 37Kw-4p |
| Aux. Motor Power | 5.5Kw-4p | 7.5Kw-4p | 7.5Kw-4p | 7.5Kw-4p |
| Max Capacity | ≤40m³/h | ≤60m³/h | ≤40m³/h | ≤40m³/h |
| Weight (kgs) | 2950 | 3150 | 2850 | 2950 |
| Dimension (mm) | 2380 x1560 x1350 | 2540 x1560 x1350 | 2810 x1490 x1350 | 3412 x1600 x1875 |
| Model | BWLW 520-2080 | BWLW 650B | BWLW 760G |
|---|---|---|---|
| Bowl Diameter (mm) | 520 | 650 | 760 |
| Bowl Length (mm) | 2080 | 2200 | 3192 |
| Bowl Speed (r/min) | 3000 | 2800 | 2650 |
| G-Force | 2610 | 2851 | 3000 |
| Separation Point（μm） | 2–5 | 2–5 | 2–5 |
| Motor Power (kw) | 45 | 75 | 132 |
| Aux. Motor Power ((kw) | 18.5 | 22 | 37 |
| Max Capacity (m³/h) | 10–30 | 30-60 | ≤118 |
| Weight /kgs | 5000 | 6800 | 12000 |
| Dimension/mm | 4537 x1248 x1429 | 4583 x1583 x1710 | 6800 x1930 x2040 |
Remark
1. Equipment Certification: IEC/UL/ATEX/CE;
2. Power Selection: 220-240V/50Hz, 380-415V/50Hz, 440-480V/60Hz, 575-600V/60Hz;
3. Motor and bearing can be selected according to customer requirements, non-explosion-proof and explosion-proof can be selected according to the use industry;
4. Drum and propeller materials can be selected according to customer purchasing power;
5. The treatment capacity of the above equipment is measured when mud density: 1.2g /cm3 and mud viscosity :45s;
