Vacuum Degasser in Oil and Gas

2022-02-17

The types of Vacuum Degasser in Oil and Gas include ZCQ240 / ZCQ270 / ZCQ360 Vacuum Degasser in Oil and Gas for drilling mud system. ZCQ240 Vacuum Degasser in Oil and Gas Capacity is up to 240m3/h. ZCQ270 Vacuum Degasser in Oil and Gas Capacity is up to 270m3/h. ZCQ360 Vacuum Degasser in Oil and Gas Capacity is up to 360m3/h.



Vacuum Degasser in Oil and Gas Working Principle


 We know the Vacuum Degasser in Oil and Gas is used to remove air or gases (methane, H2S, CO2 and others) from drilling fluids. but how does Vacuum Degasser in Oil and Gas work? A vacuum action is created to pull in the gas cut mud. When the liquid enters the tank it will flow and be distributed to a layer of internal baffle plates designed for the mud to flow in thin laminar film and is exposed to a vacuum that forces the gas to escape and break out of the mud. The vacuum pump moves the escaping gas from the vessel discharging it to the rig’s flare or environmental control system.

Vacuum Degasser in Oil and Gas in a Solids Control System

 Vacuum Degasser in Oil and Gas Application

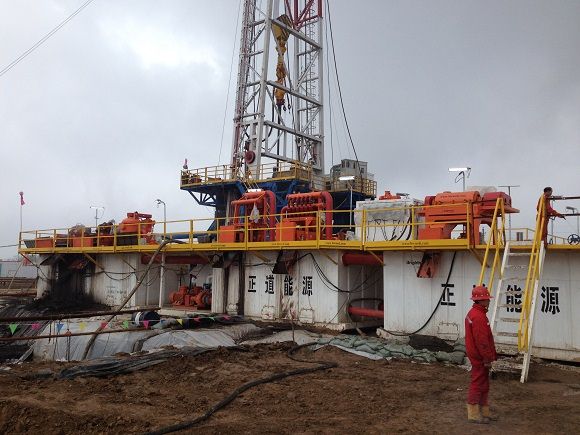

Brightway is a Vacuum Degasser in Oil and Gas Manufacturer and exporter. BWZCQ series Vacuum Degasser in Oil and Gas has been exported to many countries in the world. There are some Vacuum Degasser in Oil and Gas photos from Brightway Company on drilling site. ZCQ360 Vacuum Degasser in Oil and Gas for ZJ50 Drilling Mud System, ZCQ270 Vacuum Degasser in Oil and Gas for ZJ40 Drilling Mud System.

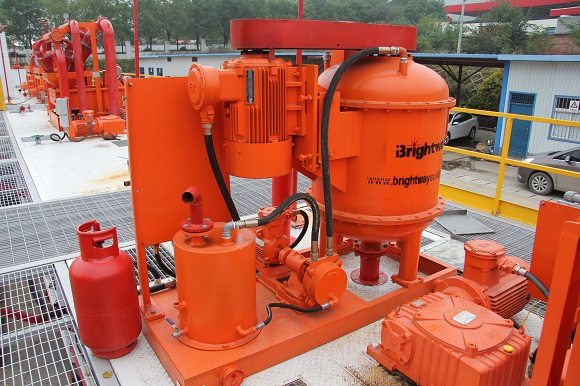

Vacuum Degasser in Oil and Gas manufactured by Brightway



More info about Vacuum Degasser in Oil and Gas: https://www.brightwaysolids.com/Vacuum-Degasser_p30.html.
