Drilling Mud Circulation System

2021-12-21

The drilling mud circulation system is an important part of the drilling rig. The drilling mud circulation system includes: shale shaker, desander desilter, decanter centrifuge, mud agitator tank, mud mixing tank, mud suction tank, sand pump, electric control, mud-gas separation and other components.

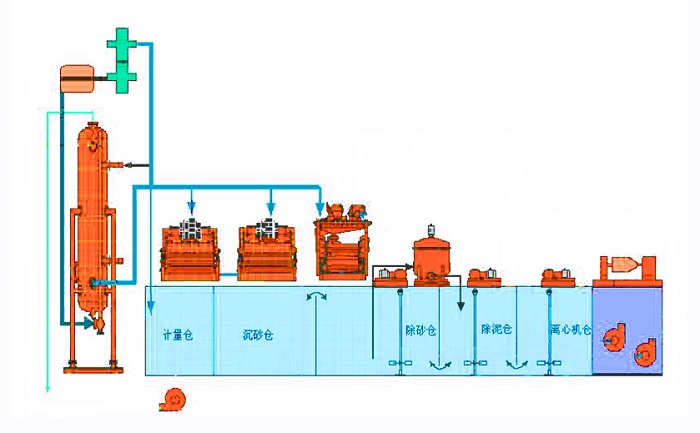

Drilling Mud Circulation System


Drilling Mud Circulation System Role

The mud circulation system plays the role of purifying mud in the drilling rig. The mud circulation system can generate mud suitable for drilling. It mainly filters the particles in the mud through the first-level classification of solid control equipment such as shale shakers to improve the performance of the mud. Meet the drilling requirements.

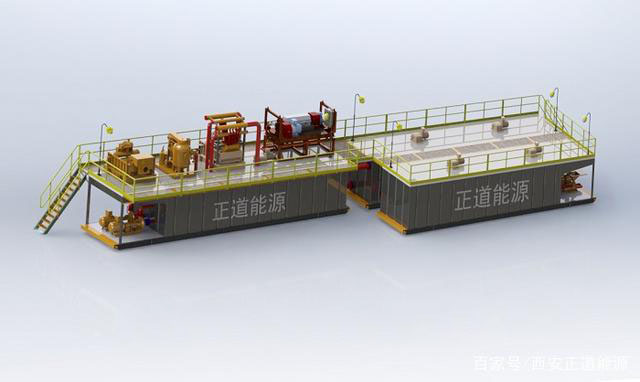

Drilling Mud Circulation System Design

Drilling Mud Circulation System Design

The mud circulation system is designed for different drilling conditions. Some drilling areas, such as Russia, need a mud circulation system that can withstand the cold. The Middle East, where the temperature is very high, and the mud purification system needs to be designed to withstand high temperatures.

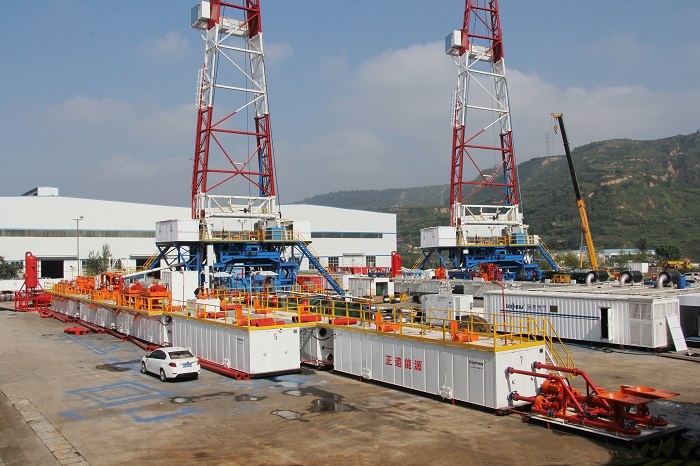

Drilling Mud Circulation System Layout

Drilling mud circulation system layout can also be designed according to drilling site conditions. For example, the drilling site is small and the mud circulation system can be lined up. Drilling site open, mud circulation system layout can be arranged side by side + one word layout; Mud circulation systems can all be implemented side-by-side when drilling site movement is required;

Drilling Mud Circulation System Layout

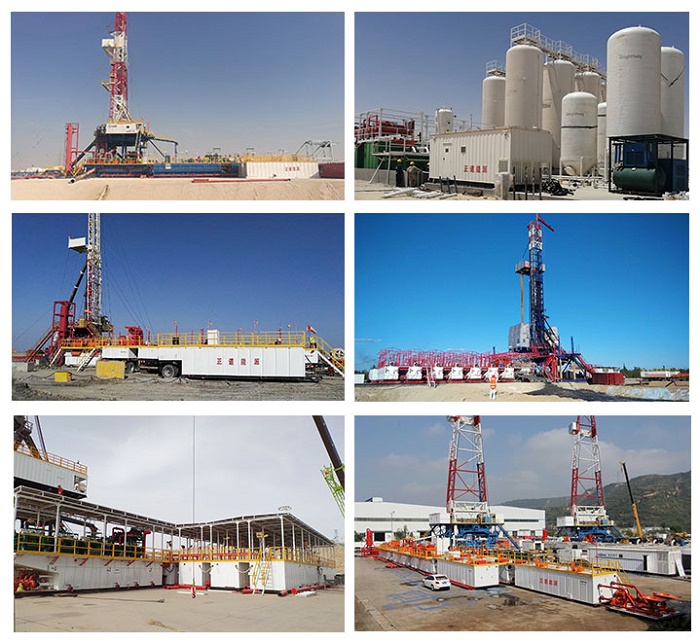

Drilling Mud Circulation System Types

Mud circulation system is also divided into 1000HP drilling rig mud circulation system, suitable for drilling rigs with a drilling depth of 4 kilometers; 1500HP drilling rig mud circulation system, suitable for drilling rigs with a drilling depth of 5 kilometers; 2000HP drilling rig mud circulation system, Suitable for drilling rigs with a drilling depth of 7 kilometers; 3000HP drilling rig mud circulation system, suitable for drilling rigs with a drilling depth of 9 kilometers. For more information, please feel free to contact us.

Drilling Mud Circulation System Types

Drilling Mud Circulation System Classification

Drilling mud circulation system according to drilling mud system, can also be divided into: oil-based mud circulation system and water-based mud circulation system. Oil-based mud circulation systems are mainly used in ultra-deep and directional Wells. The water-based mud circulation system is mainly aimed at shallow drilling which does not require high drilling mud.

In summary, the equipment composition and layout of the mud circulation system determine the function and classification of the mud circulation system. The drilling mud circulation system will improve as the drilling technology advances. Future drilling mud circulation systems will add more intelligent elements.
