2 Set TBM Mud System Will Be Shipped to UAE

2015-03-11


TBM Mud System is also called Separation plant.Brigthway Separation plant gets more and more popular in tunneling industry,after supplying 9 set Separation plant to Malaysia in January, 2015 and getting positive and good reputation from clients.

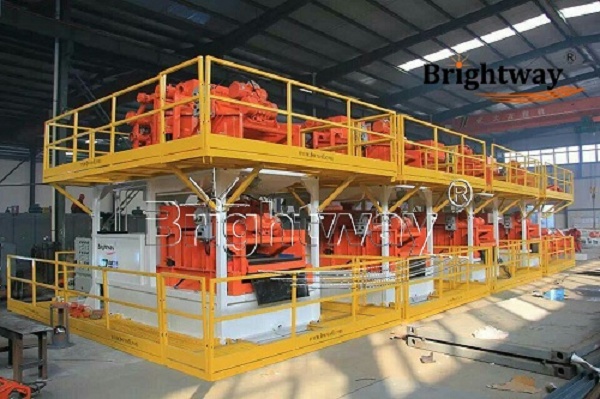

Brightway 9 Set Separation Plant to Malaysia



The 2 set Separation plant being supplied to UAE is BW160 and BW250, with capacity 160m³/h and 250m³/h, used for water processing and recycling, cutting the usage of water on tunneling site.

Tunneling machine matched

Machine #1, A Rasa DT 1350 which is 1680mm OD with flow rates 2.3 m³/min to 2.5 m³/min
Machine #2, A Rasa DT 1800 which is 2140mm OD with a flow rate 3.3 m³/min to 3.7 m³/min

Main Equipment used in Separation Plant



Equipment

Separation Plant

BW160 (160m³/h)

Separation Plant

BW250(250m³/h)

Equipment Description

Shale Shaker 1

BWZS103D

BWZS103D

Coarse sieving shale shaker,

with steel slit type shaker screens

Shale Shaker 2

BWZS103

BWZS104

Fine sieving shale shaker,

with composite material shaker screens

Cyclone Combination

BWZJ-1S8N

BWZJ-2S12N

10” cyclones and 4” cyclones used for removing particles

 between 15um~76um

Centrifugal Pump 1

BWSB8×6-14J

BWSB8×6-14J

Supplying water for 10” cyclones

Centrifugal Pump 2

BWSB6×5-12J

BWSB6×5-12J

Supplying water for 4” cyclones

Mud Agitator

BWJBQ15

BWJBQ15

Mixing mud and preventing sediment


Mud Cleaning & Recycling Flow Line
Coarse sieving shale shaker----Fine sieving shale shaker---10" cones---4" cones

Equipment Showing

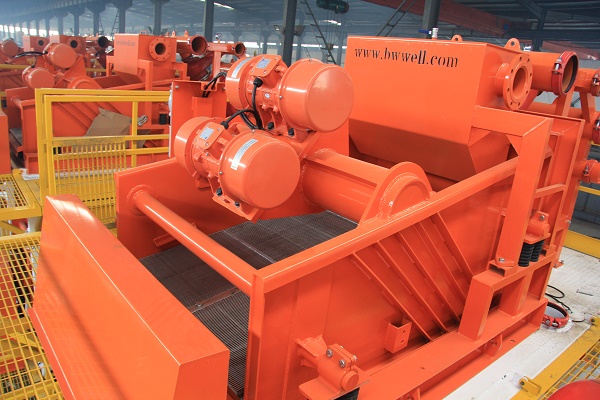

1.BWZS103D Coarse sieving shale shaker



Brightway BWZS103D Coarse Sieving Shale Shaker

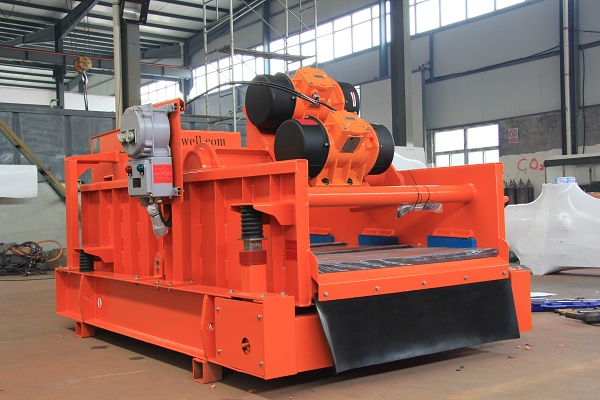

2.BWZS104 Fine sieving shale shaker



Brigthway BWZS104 Shale shaker

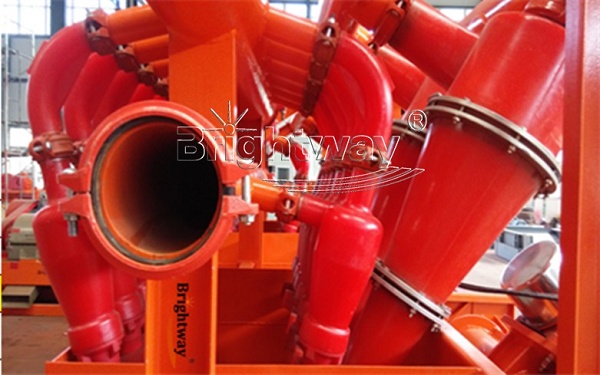

3.Cyclone Combination



Brightway Cyclone Combination

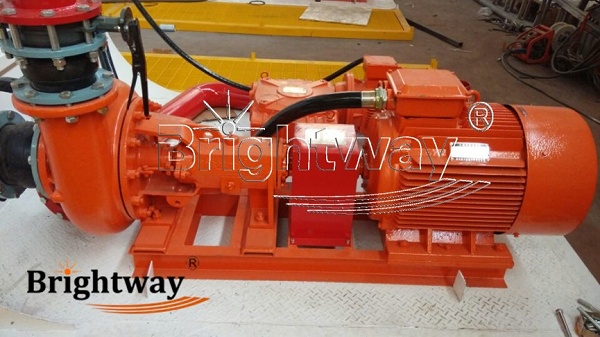

4.Centrifugal Pump



Brightway Centrifugal Pump

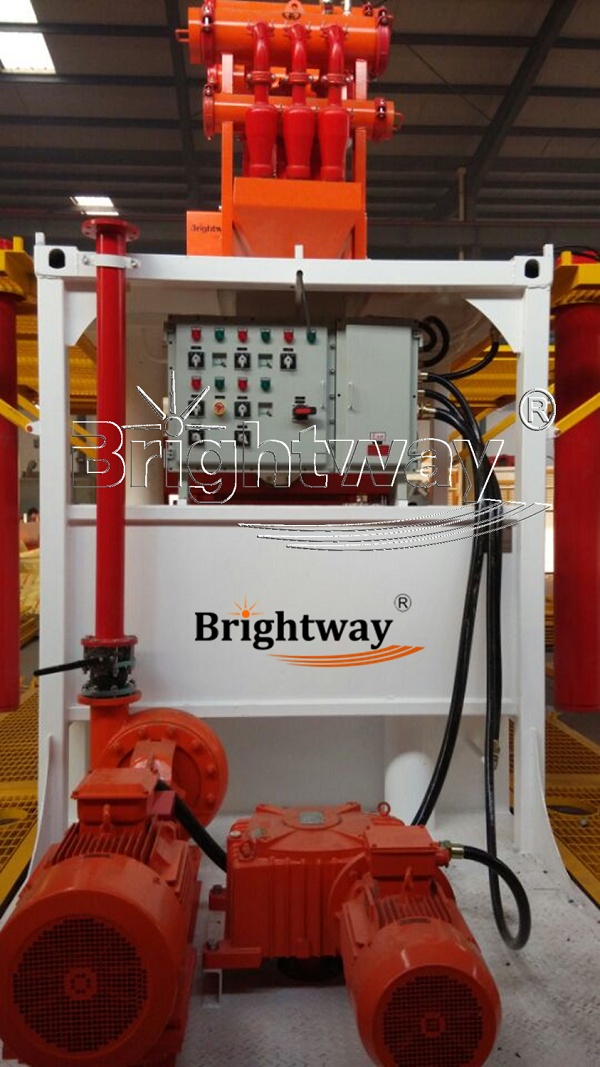

5.Back Vision



Brightway Separation Plant
