Steel Frame Shaker Screen

  •    Description & Specification
  •    Gallery

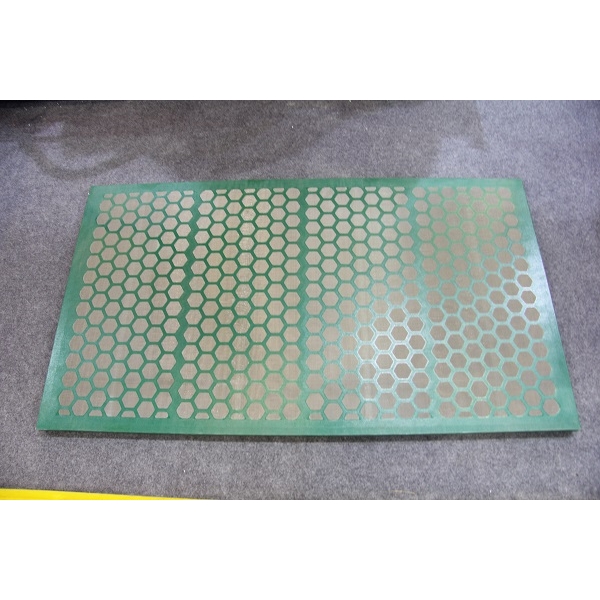

Brightway steel frame shaker screen is mostly applied to the shale shakers with wedge fastening equipment. The screen frames using high-strength square steel tube welded into multi-ribbed slab structure, sturdy and durable. These screens are constructed with two or three stainless steel layers bonded to a steel support plank. Accessary rubber plugs may be used to repair rips or tears. Mesh sizes range from 20 to 320mm. Brightway steel frame shaker screen is prodcued based on the international standard.


Brightway Steel Frame Shaker Screen Parameters

Brandt Steel Frame Shaker screen

Mesh

100 mesh



100-200 mesh

200-300 mesh

Dimension (+/- 2mm)

Length:1250mm

Width630 mm

Weight

15.5kgs

Screen material

S.S304

Frame material

Carbon steel

Package

2 pcs/outer carton, 10 ctns/wooden box


Brightway Steel Frame Shaker Screen  Advantages


To arrange these Steel Frame Shaker Screen layers reasonably and exactly,the screening effect will become better.

High strength frame,multi-ribs and the mesh cloth with moderate tension,from one reliable combination,which can increase screen's acceptabl flow,the intensity and the lifetime.

The wedge-shaped fastening device,it can make the erection of Steel Frame Shaker Screens more handily and quickly.

The mesh: divided into many independent small units by grids of the backing plate, can prevent rips or tears from spreading overmuch.

Accessary prepared rubber stoppers can be used repair damages. By doing so,the operator can cut down the stop-time and reduce the cost.


Steel Frame Shaker Screen for BWZS-852 Shale Shaker



Steel Frame Shaker Screen in Shale shaker Steel Frame Shaker Screen Details
