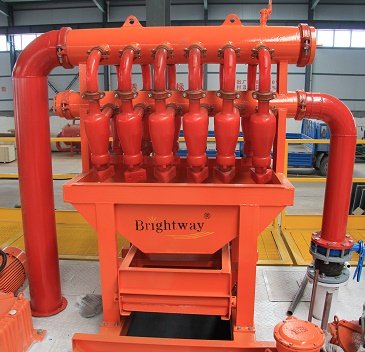

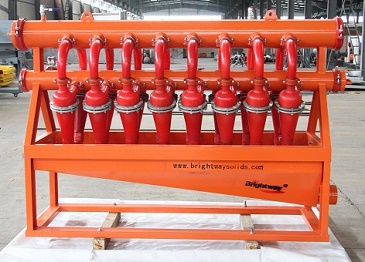

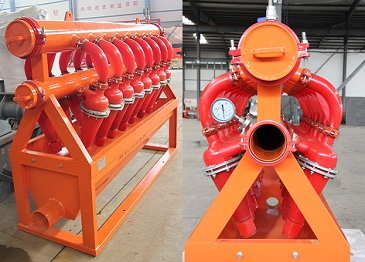

Desilter is the solid control equipment with a set of hydrocyclones that separate sand from the drilling fluids. Desilter is the third phase solids control equipment to treat the drilling fluids and improve the performance of drilling mud., It can be combined with desander to be mud cleaner called all in one machine. Generally, the cone diameter of desander is 8’’ and 10’’ which can separated the solids in fluids from 15μm to 47μm.
Brightway Desilter Advantages
1. Brightway Desilter adopts ANSYS limited element analysis. The raw material is supplied from BAOSTEEL.
2. Components are ABB/SIMENS/SCHEIDER or any other famous companies to keep high-level Manufacture standard.
3. Brightway BWCNQ100 Series Products Advantages: High-performance,long life,smooth operation.
Brightway Desilter Parameters
| Model | BWZJ 101-8N | BWZJ 101-12N | BWCNQ 100-8N | BWCNQ 100-12N |
|---|---|---|---|---|
| Capacity | 120m3/h （528GPM) | 240m3/h （1056GPM) | 120m3/h （528GPM) | 240m3/h （1056GPM) |
| D-SILTER Cyclones | 8×4″ (100mm) | 12×4″ (100mm) | 8×4″ (100mm) | 12×4″ (100mm) |
| Matching Pump | 30kw | 55kw | 30kw | 55kw |
| Motors Output | 0.45 kw (0.53hp) ×2（OLI） | 0.4 kw (0.53hp) ×1（OLI） | ||
| G-Force | ≦7.0 Gs | ≦6.5 Gs | ||
| Motion Trail | linear type | Circular vibration type | ||
| Screen Size | 585×1165 mm | 600X1600 mm | ||
| Screen Qty | 1pc | |||
| Screen Area | 0.70㎡ (7.8ft²) | 1 ㎡ (11ft²) | ||
| Screen Mesh | API 150 /175 /200 | |||
| Weight (kg) | 660 | 900 | 660 | 700 |
| Dimension (mm) | 1450 x1390 x1810 | 1465 x1550 x1960 | ||
Remark
1. Equipment Certification: IEC/UL/ATEX/CE;
2. Power Selection: 220-240V/50Hz, 380-415V/50Hz, 440-480V/60Hz, 575-600V/60Hz;
3. Environmental temperature: 30 ° C (86 ° F); Design range: -40-50 ° C (-40-122 ° F); Noise control: 75-85 dBA;
4. Shaker motor type selection can be configured according to customer requirements, explosion-proof and non-explosion-proof can be selected according to industry requirements;
5. The matching shaker and cyclone can be selected according to the purchasing power of customers;
6. Shaker screen can be selected according to customer requirements, iron frame, composite material or plate wave screen;
7. The treatment capacity of the above equipment is measured in mud density: 1.2g /cm3, mud viscosity :45s, screen mesh: 40 mesh;
