Screw Pump

  •    Description & Specification
  •    Gallery


Brightway Screw Pump Advantages



Screw Pump widely used for: Environment protection,Shipbuilding industry, Brewing Industry,Petroleum Industry.

Brightway BWG Screw Pump Series Products adopt high-performance motor,Good-quality material. Long life, Strong mud-processing capability.
Screw Pump also called Centrifuge feed pump, which is speed adjustable and can be matched with decanter centrifuge.  The main parts are screw shaft (rotor) and screw shaft bushing (stator).  The fluids flow along with the shaft, inner flow speed is slow and capacity remains, pressure is steady, so it will not generate vortex and agitating.  The rated pressure of pump outlet increases by the pump grade rising, and each grade rising brings the pressure increase 0.6 MPa.

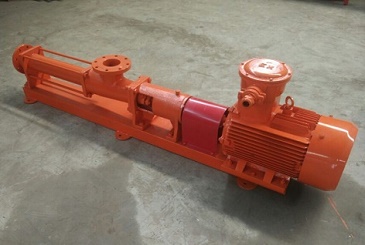

Brightway BWG Series  Screw Pump Display



brightway BWG screw pump BWG50 screw pumpbrightway scew pump in workshop Brightway screw pump



Brightway Screw Pump Parameters



Model

Capacity

Pressure

Max Speed

Power

Inlet

Outlet

Max solids

BWG40-1

12m³/h

0.6Mpa

960RPM

4Kw

80mm

65mm

3.8mm

BWG50-1

14m³/h

0.6Mpa

720RPM

5.5Kw

100mm

80mm

5.0mm

BWG60-1

22m³/h

0.6Mpa

720RPM

11Kw

120mm

100mm

6.0mm

BWG70-1

40m³/h

0.6Mpa

720RPM

11Kw

150mm

125mm

8.0mm

BWG85-1

56m³/h

0.6Mpa

630RPM

15Kw

150mm

150mm

10.0mm

BWG105-1

100m³/h

0.6Mpa

500RPM

30Kw

80mm

65mm

15.0mm
