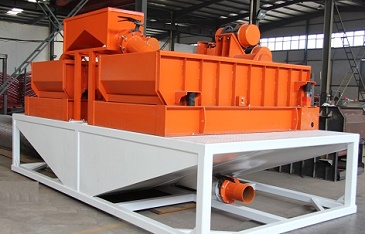

Drying Shakers are used in processing cuttings, playing an important role in the waste drilling mud treatment. It brings customer both the economical and the environmental benefits. Brightway Drying shaker, the first choice of oilfield environmental waste drilling cuttings screening and drying, combines with advanced technology, winning many orders with large quantity. It has advantages of less spare parts, high efficiency, large capacity, easy operation and maintenance.
Brightway Drying Shale Shaker Advantages
Brightway drying shaker adopts the Martin vibration motor and famous brand electronic components such as ABB, SIMENS, SCHEIDER to make the shakers work in good condition.
1. Adopt ANSYS limited element analysis to optimize the structure.
2. Wearing parts can interchange with international brands.
3. High frequency and variable frequency.
4. Vibration motor adopt international famous brand such as OLI, Italvibras, Martin.
5. Electric control system adopt the domestic famous brands, Electrical components use the famous brand, such as SIEMENS, SCHNEIDER, ABB.
6. The screen box adopt coaxial mechanical adjustment and can be adjust the angle flexibly.
Brightway Drying Shale Shaker Parameters
| Model | BWZS104G |
|---|---|
| Capacity | ≤150m3/h （660GPM) |
| Rated Motors Output | 1.865kw(2.5hp) ×2（Martin） |
| G-Force | ≤8.5Gs |
| Operating Temperature | 30°C (86°F) |
| Design Range | -40-50℃ （-40-122°F） |
| Noise Data | 75-85 dBA |
| Deck Adjustment | -1°~+5° |
| Screen Material | Composite Materials/ Metal frame |
| Screen Size | 585×1165 mm |
| Screen Qty | 4pcs |
| Screen Area | 2.73㎡ (30ft²) |
| Weight | 1800 kgs |
| Dimension | 2890x2715x1900mm |
| Power | 220-240V/ 50Hz, 380-415V/ 50Hz, 440-480V/ 60Hz, 575-600V/ 60Hz |
| Certification | IEC/UL/ATEX/CE |
Remark:
1. Shaker motor type selection can be configured according to customer requirements, explosion-proof and non-explosion-proof can be selected according to industry requirements;
2. Equipped with a special spray water washing device;Can effectively solve customers solid phase separation cleaning;
3. Screen screen is selected according to the materials to be processed provided by the customer;
4. The treatment capacity of the above equipment is measured in mud density: 1.2g /cm3, mud viscosity :45s, screen mesh: 40 mesh;
