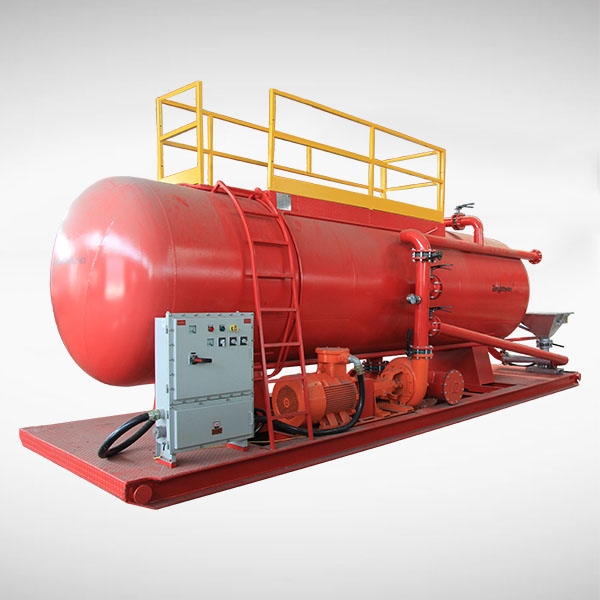

Brightway Hydration Tank  Advantages



Hydration tank is also called super mud mixing system.It only designed and manufactured by Brightway. Hydration tank usually used in the O&G ,CBM or HDD projects which can be mixed over 3 times than mud mixing hopper or jet mud mixer device. Brightway Tank body adopts flat or corrugated structure panel, tank top/walkway/ladder with anti-slip iron panel or zinc plated iron panel, guardrail with square tube in foldable structure, washing pipes assembled for washing equipments and tank.



Brightway Hydration Tank Parameters



Product

Hydration Tank

Model

BWSHG-10

BWSHG-20

BWSHG-30

BWSHG-40

Macthing Pump

BWSB4X3-11J
15kw

BWSB5X4-13J
(30kw)

BWSB6X5-13J
 (45kw)

BWSB8×6-13J
(55kw)

Capacity

60m³/h264GPM

120 m³/h528GPM

180m³/h792GPM

240m3/h(1056GPM)

Working Pressure

0.40Mpa

Inlet

DN150

DN200

Outlet

DN100

DN150

Screen Standards

1mm

Burden Speed

500 kg/min

600 kg/min

1000 kg/min

1500kg/min

Density

1.5 g/cm3

2.0 g/cm3

2.4 g/cm3

2.8g/cm3

Viscosity

60s

80s

120s

120s
