Centrifugal pump is important equipment used in solids control system, providing drilling fluid to other equipment by its suction and pumping out function, achieving transfer of drilling fluids. Its main working principle is the centrifuging power coming from rotating impeller.
Brightway Centrifugal Pump Advantages
1. Brightway centrifugal pump adopt Carbide alloy mechanical seal;
2. Ductile iron pump shell, impeller adopt high-chromium alloy;
3. All accessories can be exchanged with the international Mission pump;
4. Centrifugal pump use FAG bearing;

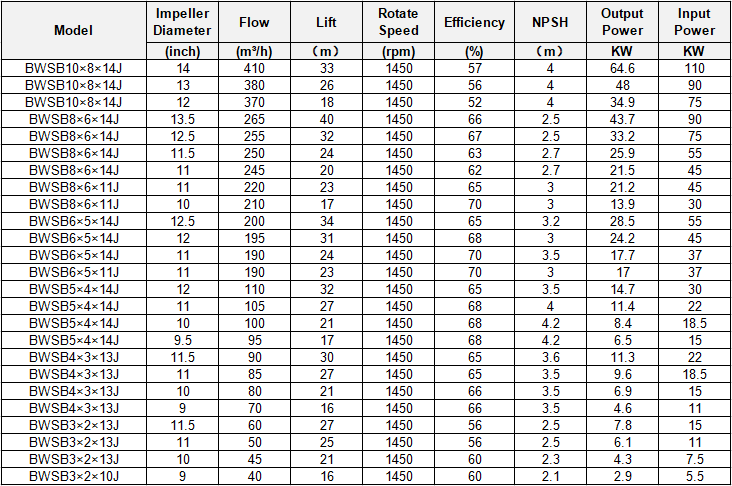

Brightway Centrifugal Pump Parameters
| Model | Flow (m³/h) | Lift(m) | Power(KW) | Speed (rpm) | Efficiency(%) |
|---|---|---|---|---|---|
| BWSB10×8×14J | 410 | 33 | 110 | 1450/1750 | 57 |
| BWSB10×8×14J | 380 | 26 | 90 | 1450/1750 | 56 |
| BWSB10×8×14J | 370 | 18 | 75 | 1450/1750 | 52 |
| BWSB8×6×14J | 265 | 40 | 90 | 1450/1750 | 66 |
| BWSB8×6×14J | 255 | 32 | 75 | 1450/1750 | 67 |
| BWSB8×6×14J | 250 | 24 | 55 | 1450/1750 | 63 |
| BWSB8×6×14J | 245 | 20 | 45 | 1450/1750 | 62 |
| BWSB8×6×11J | 220 | 23 | 45 | 1450/1750 | 65 |
| BWSB8×6×11J | 210 | 17 | 30 | 1450/1750 | 70 |
| BWSB6×5×14J | 200 | 34 | 55 | 1450/1750 | 65 |
| BWSB6×5×14J | 195 | 31 | 45 | 1450/1750 | 68 |
| BWSB6×5×14J | 190 | 24 | 37 | 1450/1750 | 70 |
| BWSB6×5×11J | 190 | 23 | 37 | 1450/1750 | 70 |
| BWSB5×4×14J | 110 | 32 | 30 | 1450/1750 | 65 |
| BWSB5×4×14J | 105 | 27 | 22 | 1450/1750 | 68 |
| BWSB5×4×14J | 100 | 21 | 18.5 | 1450/1750 | 68 |
| BWSB5×4×14J | 95 | 17 | 15 | 1450/1750 | 68 |
| BWSB4×3×13J | 90 | 30 | 22 | 1450/1750 | 65 |
| BWSB4×3×13J | 85 | 27 | 18.5 | 1450/1750 | 65 |
| BWSB4×3×13J | 80 | 21 | 15 | 1450/1750 | 66 |
| BWSB4×3×13J | 70 | 16 | 11 | 1450/1750 | 66 |
